Bumby point cloud / Mesh suggestions?

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Bumby point cloud / Mesh suggestions?

    Hey folks,

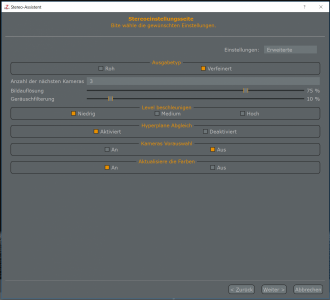

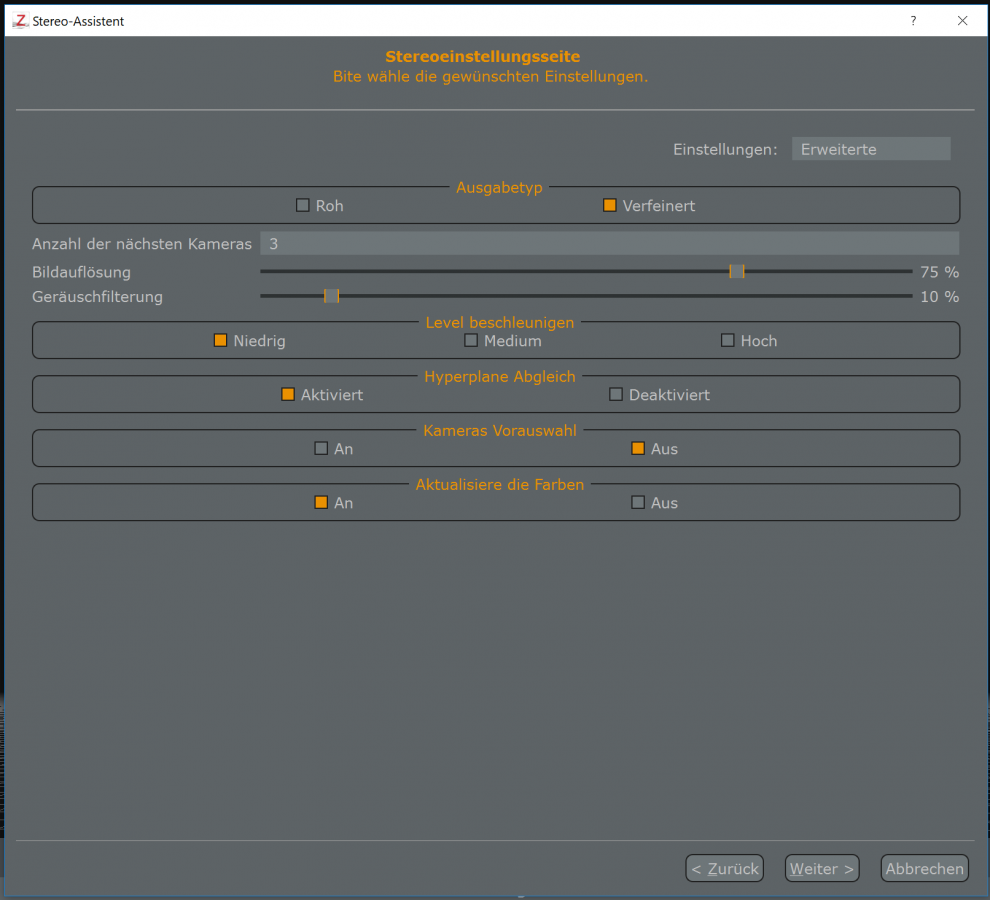

    I am really struggling right now to create a smooth and clean mesh. I took 108 photos and masked them, the allignment was succesfull and i created a dense point cloud with the settings below. (pic1)

    Click image for larger version

Name:	settings dense cloud.PNG
Views:	67
Size:	661.9 KB
ID:	5630

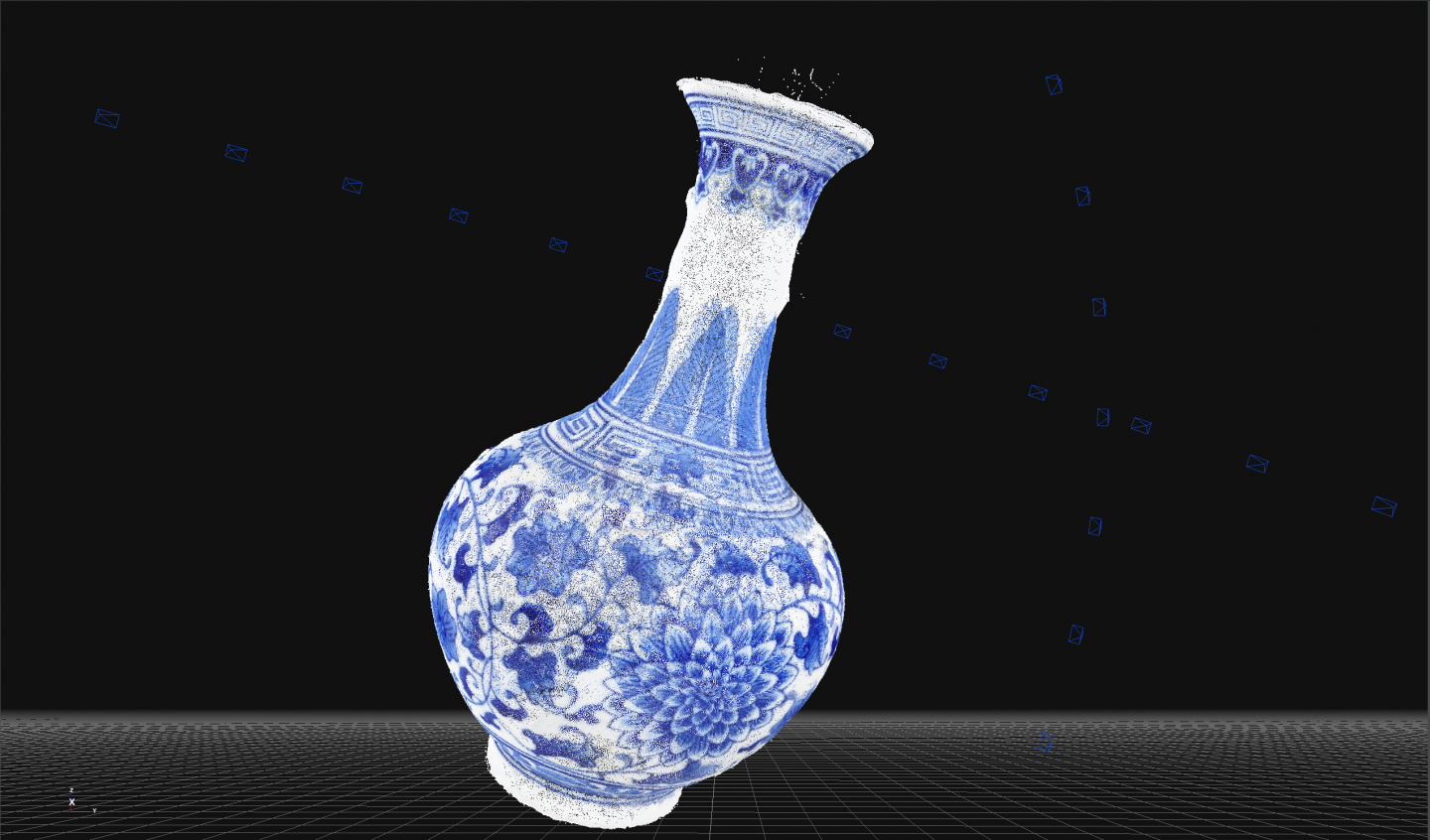

    As you can see the cloud looks quite good at the 1st. look, but there are some bumby surfaces at the top of the vase. (pic2)

    Click image for larger version

Name:	dense pointcloud1.PNG
Views:	55
Size:	918.1 KB
ID:	5631

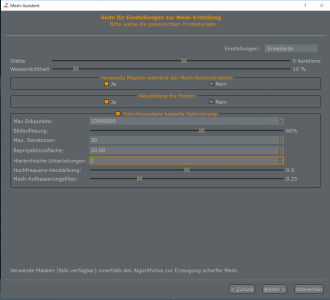

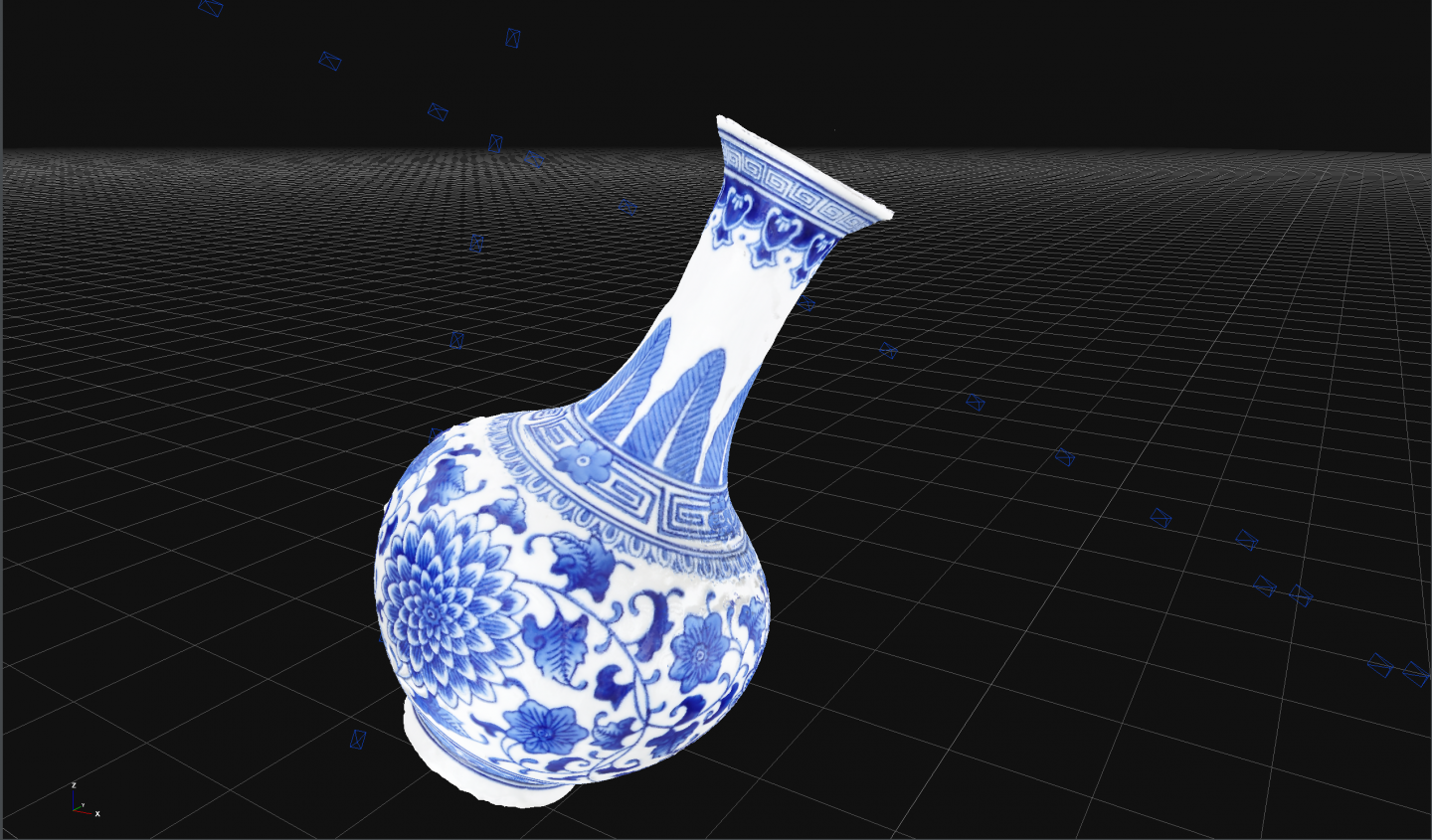

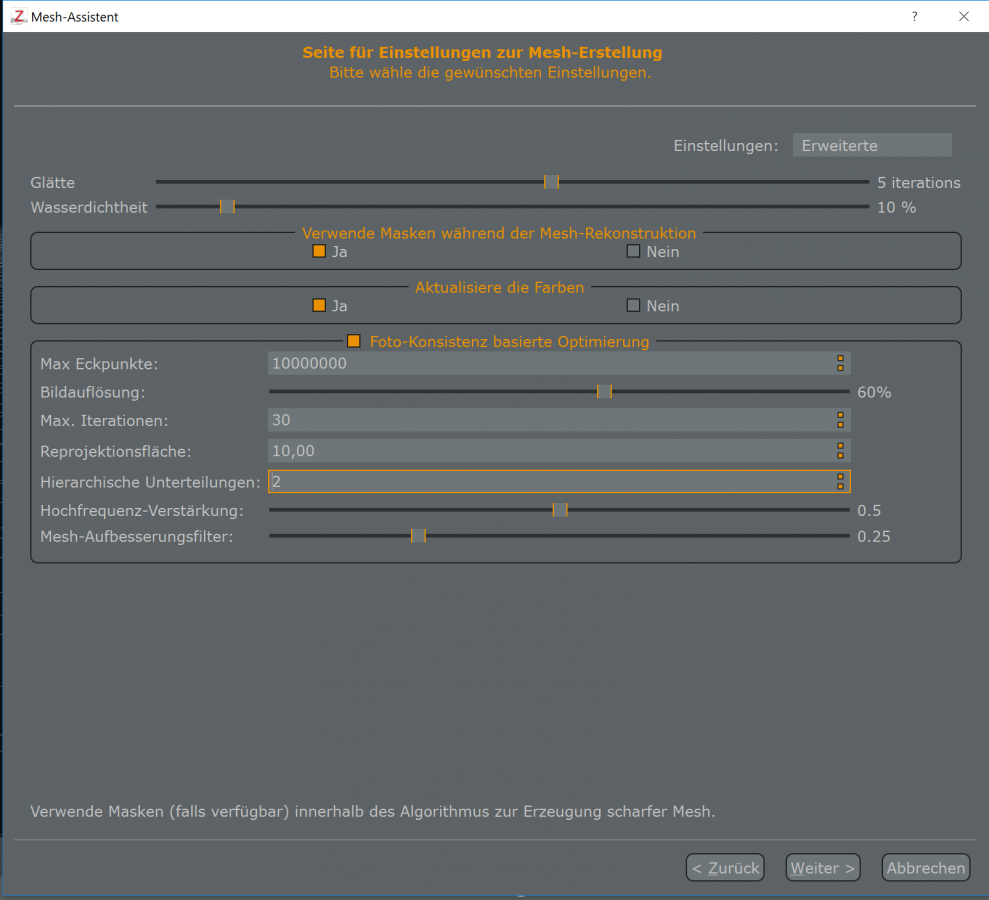

    I kept on going an created the mesh with following settings. (pic3) As expected the mesh was bumby as the cloud. (pic4)

    Click image for larger version

Name:	mesh extractions settings.PNG
Views:	48
Size:	713.1 KB
ID:	5633

    Click image for larger version

Name:	mesh extraction result.PNG
Views:	51
Size:	640.0 KB
ID:	5632

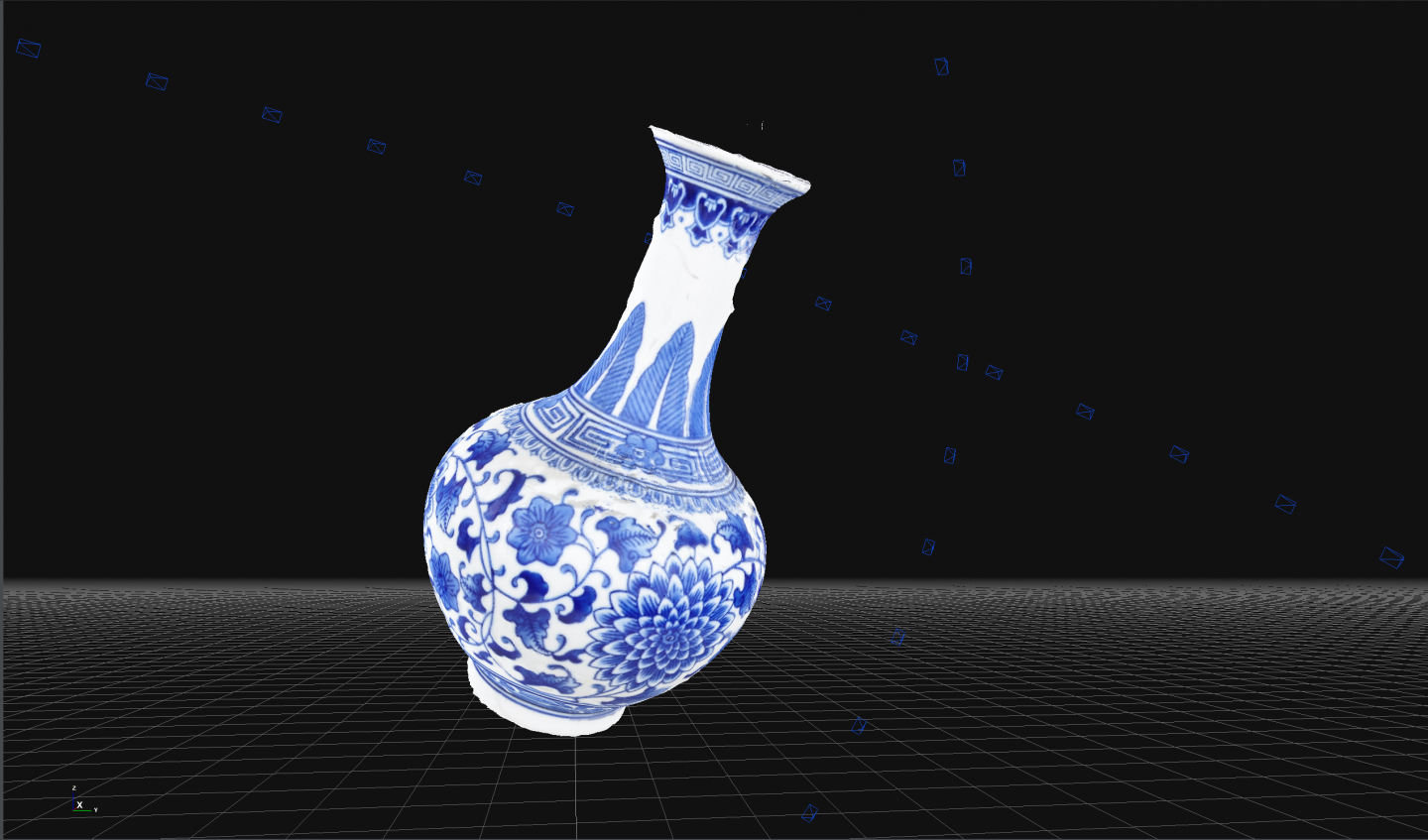

    I tried the mesh filters as it is suggested in the tutorials but the mesh is still bumby. The result after applying the filter is the following.

    Click image for larger version

Name:	mesh filter setting1.PNG
Views:	50
Size:	921.0 KB
ID:	5634

    There was many attempts but none was good enough. I am out of ideas.
    Do you have any suggestions?



    Thanks Br.

    Chris


  • #2
    Hi ryutosakura - Can you upload your data-set to google drive or something like that and share it so we can have a look at give you feedback? Thanks

    Comment


    • #3
      Hi cam3d - I guess with data set you mean the log-file from the reconstruction, right?

      https://www.dropbox.com/sh/cydt72g89...eY3rCfnXa?dl=0

      my photo setup is the following.

      Nikon D90 or D810 (for this project i used the D90)
      resolution: 4288 x 2848
      Manual Mode
      ISO: 320
      aperture: F14
      exposure time: 3
      Turntabel (I activated the circular photo allignment)
      Daylight LED´s
      Last edited by ryutosakura; 2019-09-06, 12:12 PM.

      Comment


      • #4
        Hello ryutosakura, with dataset we mean photos and zep file, so we can see exactly what we're dealing with - it's hard to tell from some screenshots only

        My guess (but until we see the photos and zep that's all it is - a guess) is that you have bumps only where the porcelain is completely uniform. That is normal unfortunately due to the fact that completely plain surfaces are hard to process for photogrammetry in general, and you should consider eventually an advanced approach such as dirtying the surface or using projected patterns ( https://www.youtube.com/watch?v=E06k...ature=youtu.be , 4:20 mark )

        Eventually, you can try using the SfS if you're using Zephyr Pro or Aerial since it's a very simple shape.
