Case Study – Multispectral Images



Today’s case study has been carried out by DL Droni SRL, Italian company providing aerial photography and photogrammetry services such as:

  • Thermal Inspections
  • Infrastructure Inspections
  • Inspections of telephone antennas
  • Precision Agriculture

In this case, they used a specific camera to shoot multispectral photos of countryside area to monitor vegetation and processed them with 3DF Zephyr Aerial.

Survey :

Surveying equipment consisted of :

  • Drone DJI Mavic Pro (sensor size: 1/2.3″)
  • Multispectral Camera Parrot Sequoia

Data collecting :

  • 80 x 4 Multiband pictures (GRE – NIR – RED – REG)





Picture 1. Example of Multispectral images



Workflow :

After the survey phase, they proceeded to calibrate images into 3DF Zephyr environment with apposite tool radiometric calibration.

This tool allowed them to convert the raw images into calibrated ones using calibration panel.





Picture 2. Calibration panel visualized in calibration tool



They continued until the generation of the orthophoto, customizing the output bands with the calculation of GNDVI index

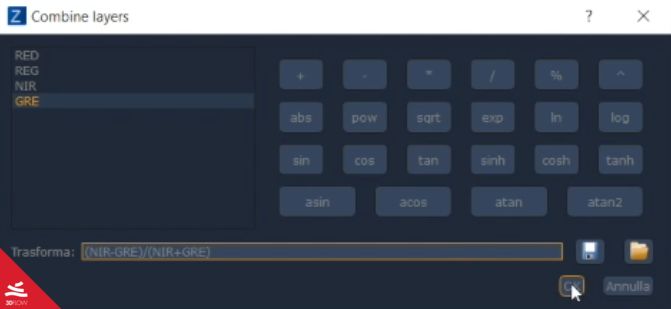

Picture 3. Custom layer combiner tool

Results :

This workflow allowed them to create a multispectral view of the surveyed area, analyzing it with the index they needed.

Below the results :

Picture 4. NDVI Index



Picture 5. GNDVI Index



Picture 6. NDRE Index



With these resulting images, they were able to satisfy the customer’s needs by analyzing the area taken into consideration and highlighting, through the NDVI index, the areas with the highest density of vegetation alive.

Here is a link of the video showing the entire process directly carried out and kindly offered by DL Droni.
